Motherboard AK-SR7

Hardware RAID

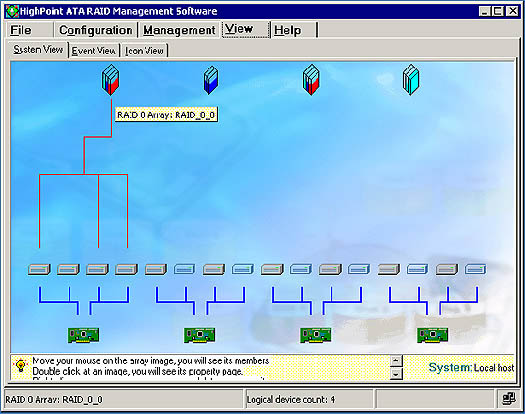

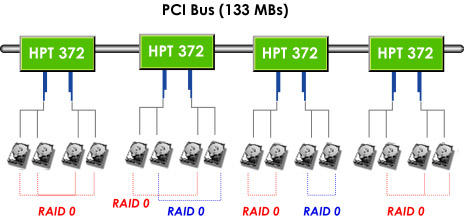

Hardware Based RAID 0 Disk Array :
  • AK-SR7 integrates four hardware IDE RAID controllers. Each controller controls four hard drives. There are many kinds of RAID 0 combination as the following illustration show:

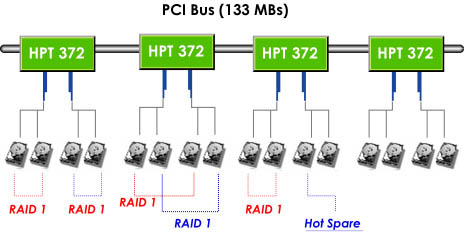

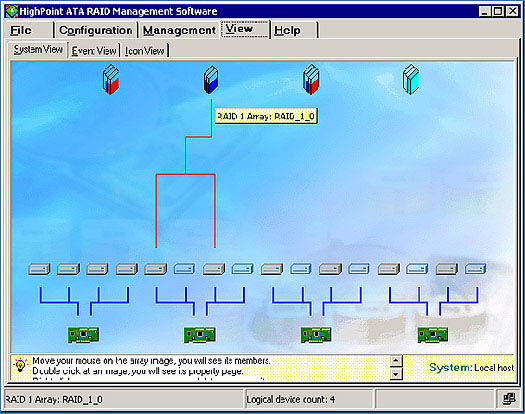

Hardware Based RAID 1 Disk Array :
  • AK-SR7 has powerful hardware based RAID 1 function. RAID 1, also known as disk mirroring, can fully protect data against loss.

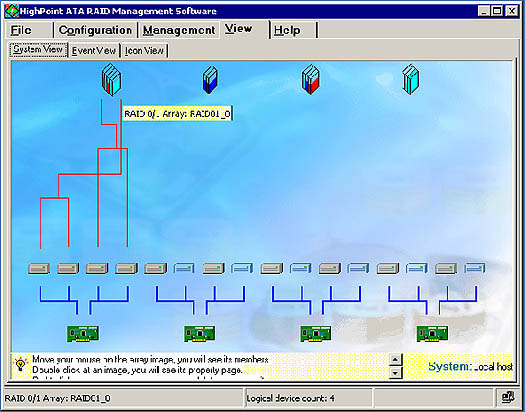

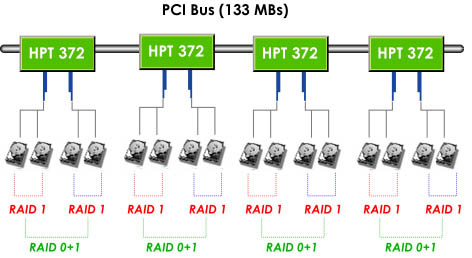

Hardware Based RAID 0 + 1 Disk Array :
  • AK-SR7 has hardware based RAID 0+1 function. This function can protect data again lost as well as enhance I/O performance.
  • AK-SR7 can configure four sets of RAID 0+1 disk array.
