Motherboard AK-SR7

Virtual LAN

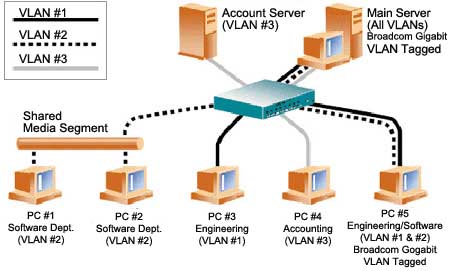

  • The AK-SR7's Broadcom Gigabit controller supports VLANs configuration. VLANs allows you to split your physical LAN into logical subparts, to create logical segmentation of workgroups and to enforce security policies among each logical segment.
  • With multiple VLANs on a NIC, the AK-SR7 powered server with a single Gigabit NIC can have a logical presence on multiple IP subnets.

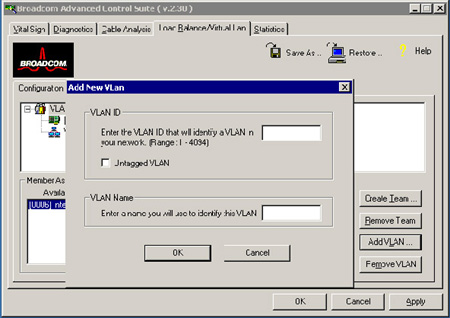

  • Up to 64 VLANs can be defined for the Broadcom Gigabit controller on the AK-SR7.
