Motherboard AK-SR7

Utilities
Vital Sign :

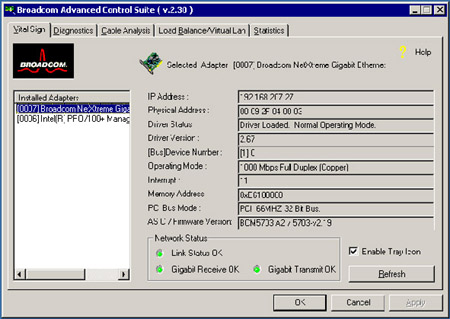

  • The Vital Sign allows users to view vital controller information, network status, and network connectivity.

Diagnostics :

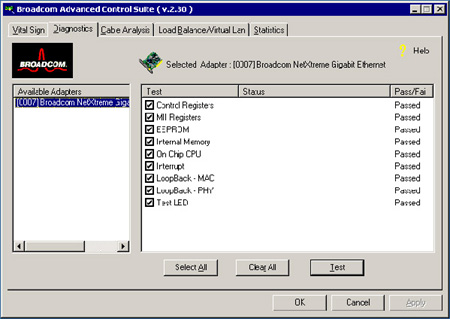

  • The Diagnostics functions allows users to view information for onboard Gigabit controller. It can be used to test the physical adapter components.

Ethernet Cable Analysis :

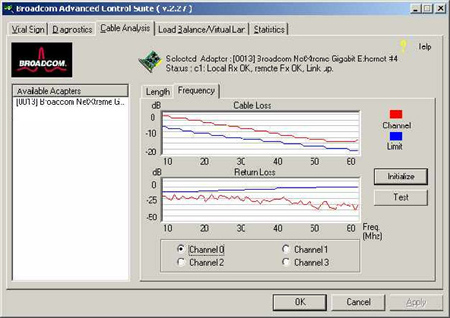

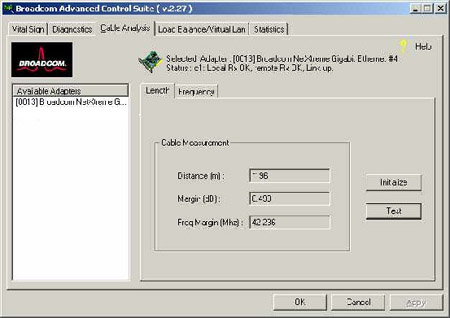

  • Using the Cable Analysis feature, the user can monitor conditions of an Ethernet CAT5 cable connection within a cable plant in an Ethernet network. It measures the cable quality and compares it against the IEEE 802.3ab for compliance. Given a graphical environment, it can display the frequency-response characteristics of each cable pair.


  • The frequency analysis


Networking Statistics :
  • Using the Cable Analysis feature, the user can monitor conditions of an Ethernet CAT5 cable connection within a cable plant in an Ethernet network. It measures the cable quality and compares it against the IEEE 802.3ab for compliance. Given a graphical environment, it can display the frequency-response characteristics of each cable pair.
